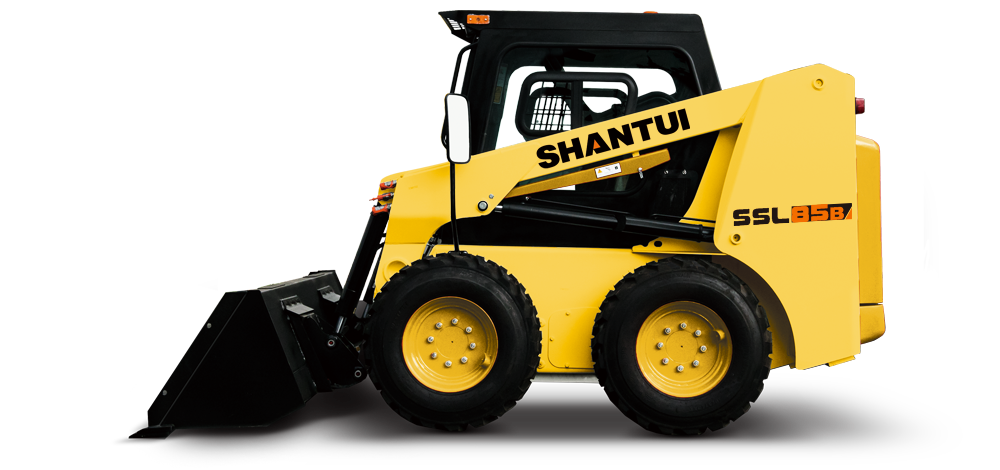

SSL85B
Skid Steer Loader
SSL85B
  • Total power(kw)
    55
  • Operating weight(kg)
    3500
  • Bucket capacity(m³)
    0.54
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The engine is designed to be energy-efficient and environmentally friendly, providing a quick power response. Its hydraulic system features smooth and stable performance, enabling fast travel speed and high operational efficiency.
Ease of maintenance and operation comfort
The cab is designed with a large-angle backward flipping feature, offering a spacious maintenance area. The integrated control panel design ensures comfortable operation and presents a clear display of machine performance parameters, allowing for real-time monitoring of machine operation status.
Adaptability to diverse working conditions
Equipped with internationally universal quick-change devices, the machine allows for fast and convenient attachment changes. The compact and flexible design makes the machine well-suited for a wide range of construction applications, including municipal construction, road maintenance, port handling, and operations in confined spaces.
Parameter
Parameter SSL85B
Total power(kw) 55
Operating weight(kg) 3500
Bucket capacity(m³) 0.54
External dimensions(mm) 3460X1820X2000
Rated loading capacity(t) 1.2
Maximum dumping height(mm) 2440
Dumping distance(mm) /
Subtotal(s) /
Wheelbase(mm) 1080
Maximum speed(km/h) 11.8
Emissions (Indicated as per international standards) Eu stageⅡ
