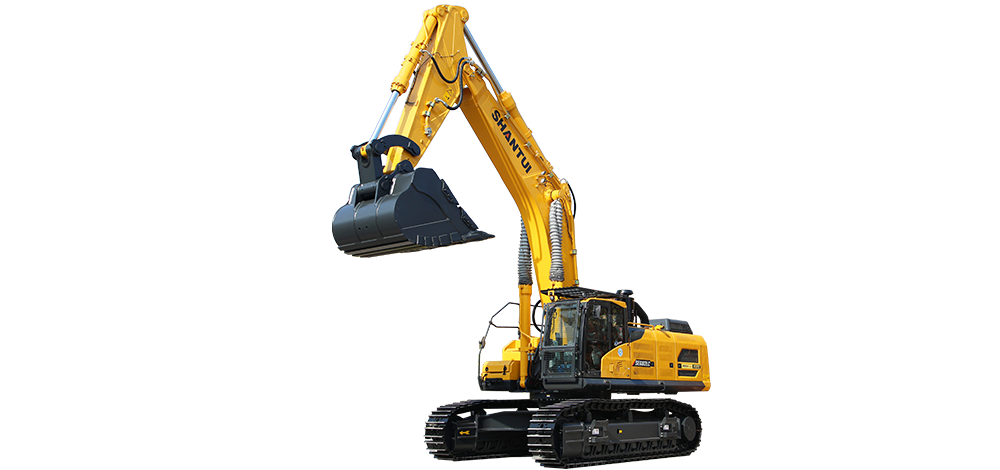

SE680LCW
Mining Excavator
SE680LCW
  • Operating weight(kg)
    66000
  • Engine power(kW/rpm)
    566/1900
  • Bucket capacity(m³)
    4
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
High-power engine, customized large displacement main pump, Weichai + Linde super powerful golden combination + fully electronic control system.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch capacitive touchscreen, featuring a full-fitting IPS screen with wide viewing angles and high brightness, ensuring excellent visibility even under sunlight. The machine also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, breaker hammers, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
Parameter
Parameter SE680LCW
Operating weight(kg) 66000
Engine power(kW/rpm) 566/1900
Bucket capacity(m³) 4
External dimensions(mm) 12245*3735*4750
Bucket rod digging force(kN) 365
Bucket digging force(kN) 420
Rotating speed(r/min) 0-7
Travel speed(km/h) 3.2/4.7
Maximum digging height(mm) 10855
Maximum digging distance(mm) 11520
Maximum digging depth(mm) 7040
Emissions (Indicated as per international standards) Eu stage IIIA
