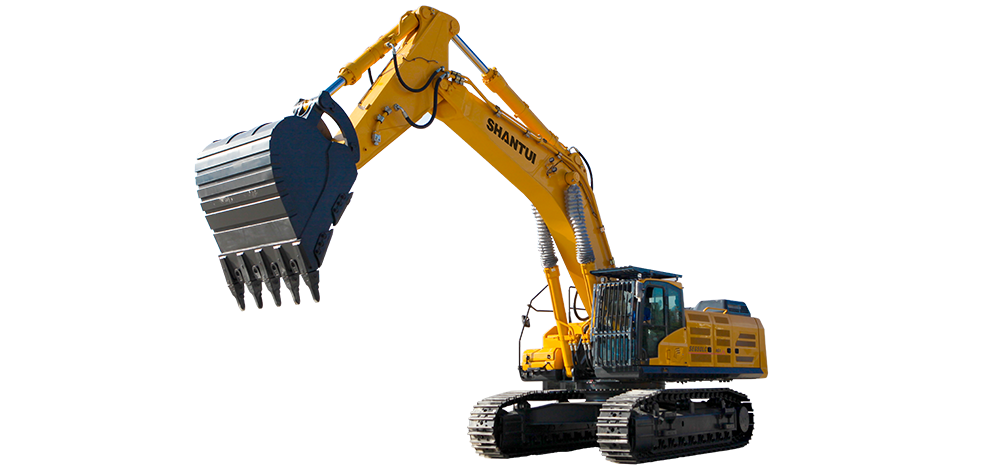

SE650LC
Mining Excavator
SE650LC
  • Operating weight(kg)
    64500
  • Engine power(kW/rpm)
    377/1800
  • Bucket capacity(m³)
    3.6
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with a dedicated high-power engine, enabling it to excel in heavy-duty work conditions. It features a large-displacement main pump for exceptional efficiency, an independent oil radiator, and intelligent control, all working together to ensure optimal performance and extended service life of the hydraulic system.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch capacitive touchscreen, featuring a full-fitting IPS screen with wide viewing angles and high brightness, ensuring excellent visibility even under sunlight. The machine also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, breaker hammers, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
Parameter
Parameter SE650LC
Operating weight(kg) 64500
Engine power(kW/rpm) 377/1800
Bucket capacity(m³) 3.6
External dimensions(mm) 12245*3735*4750
Bucket rod digging force(kN) 365
Bucket digging force(kN) 420
Rotating speed(r/min) 0-7
Travel speed(km/h) 3.2/4.7
Maximum digging height(mm) 10855
Maximum digging distance(mm) 11520
Maximum digging depth(mm) 7040
Emissions (Indicated as per international standards) Eu stage IIIA
